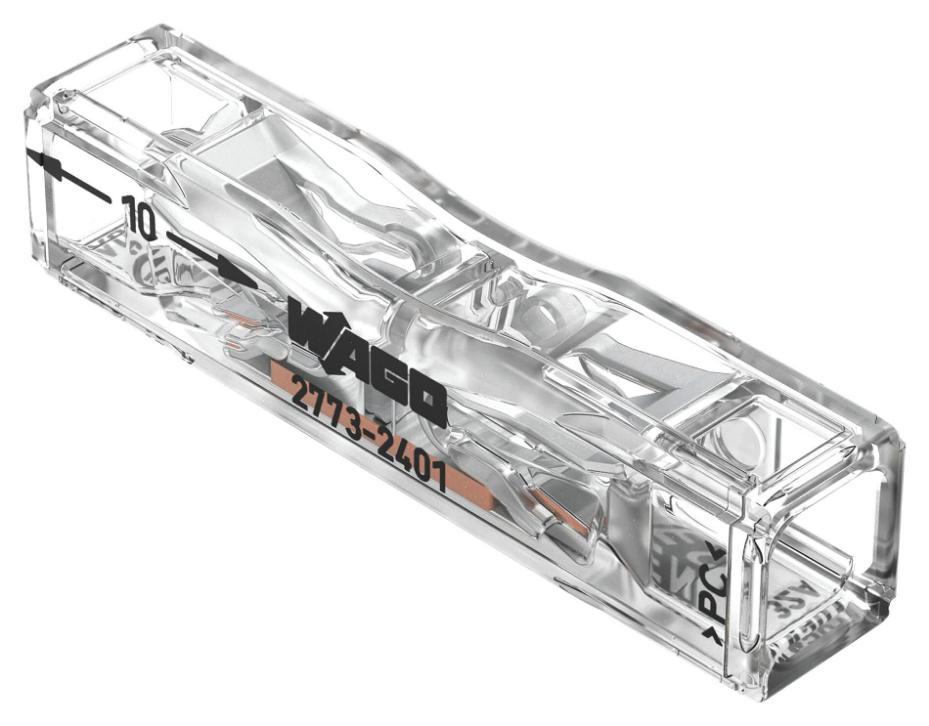

Push Wire Inline Splice Connector, 4mm2, 450V, 32A - 2773-2401
Push Wire Inline Splice Connector, 4mm2, 450V, 32A - 2773-2401
Regular price
£1.89 GBP
Regular price
Sale price
£1.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
2773-2401 is a PUSH WIRE® inline splicing connector for solid and stranded conductors.
Features
- Solid conductors: 0.75mm2 to 4mm2 (18 AWG to 12 AWG)
- Transparent cover, transparent housing, 2-conductor
- Stranded conductors: 1.5mm2 to 4mm2
- Nominal Voltage: 450V AC
- Rated current: 32A
- Surrounding maximum air temperature is 85°C
- UL 486C approved
- Polycarbonate (PC) insulation material
- Flammability class per UL94-V2
- Electrolytic copper (ECu) contact material with tin contact plating
- Continuous operating temperature of 105°C
- Dimensions (WxHxD): 6.8x6.15x29mm
| Specifications | |
|---|---|
| Pitch Spacing | -mm |
| No. of Positions | 2Ways |
| Conductor Area CSA | 4mm2 |
| Rated Current | 32A |
| Rated Voltage | 450V |
