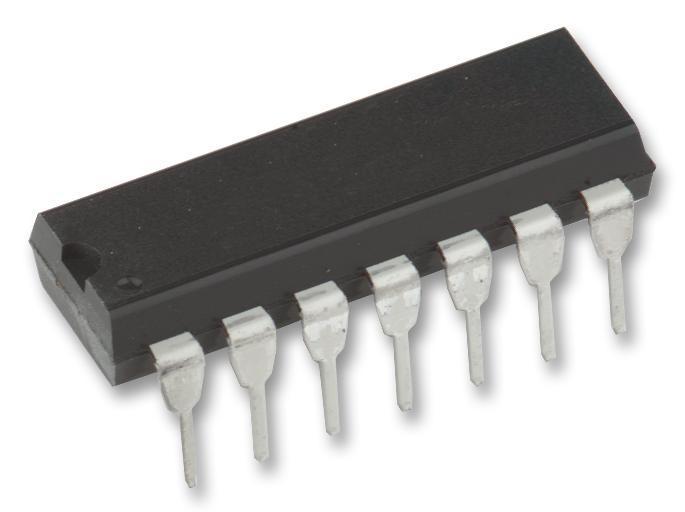

Quad 2 Input NOR Gate, DIP14 - 74HC02
Quad 2 Input NOR Gate, DIP14 - 74HC02
Regular price
£2.79 GBP
Regular price
Sale price
£2.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The M74HC02 is an high speed CMOS quad 2 Input NOR gate fabricated with silicon gate C2MOS technology. The internal circuit is composed of 3 stages including buffer output, which enables high noise immunity and stable output.
| Specifications | |
|---|---|
| Logic Function | NOR Gate |
| No. of Elements | Quad |
| No. of Inputs | 2Inputs |
| No. of Pins | 14Pins |
| Logic Case Style | DIP |
| Logic IC Family | 74HC |
| Supply Voltage Min | 2V |
| Supply Voltage Max | 6V |
| Schmitt Trigger Input | Without Schmitt Trigger Input |
| Output Current | 25mA |
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 125°C |
| Country of Origin: | United States |
