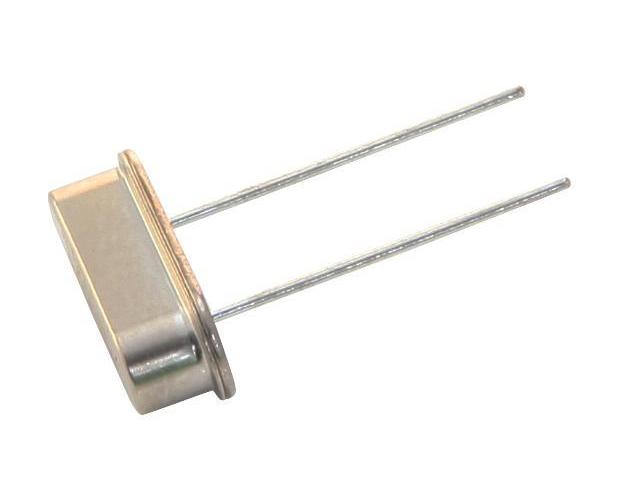

Quartz Crystal, 8MHz, 11.5mm x 5mm, 30ppm, 18pF, 30ppm - 9B-8.000MAAJ-B
Quartz Crystal, 8MHz, 11.5mm x 5mm, 30ppm, 18pF, 30ppm - 9B-8.000MAAJ-B
Regular price
£1.59 GBP
Regular price
Sale price
£1.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The 9B series Quartz Crystal Unit operating at a frequency range of 3.2 to 90MHz with ±30PPM frequency stability. It is suitable for use in TV, STB, LCDM and cable modem applications.
Features
- Resistance welded type crystal unit
- A great number of standard frequencies
- Higher frequency pullability and lower equivalent series resistance
- Highly mass production capability
| Specifications | |
|---|---|
| Frequency Nom | 8MHz |
| Crystal Case | Through Hole, 11.5mm x 5mm |
| Frequency Stability + / - | 30ppm |
| Load Capacitance | 18pF |
| Frequency Tolerance + / - | 30ppm |
| Product Range | 9B Series |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Country of Origin: | China |
