Qwiic Precision Temperature Sensor Board, TMP117 - SEN-15805
Qwiic Precision Temperature Sensor Board, TMP117 - SEN-15805
Regular price
£19.79 GBP
Regular price
Sale price
£19.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

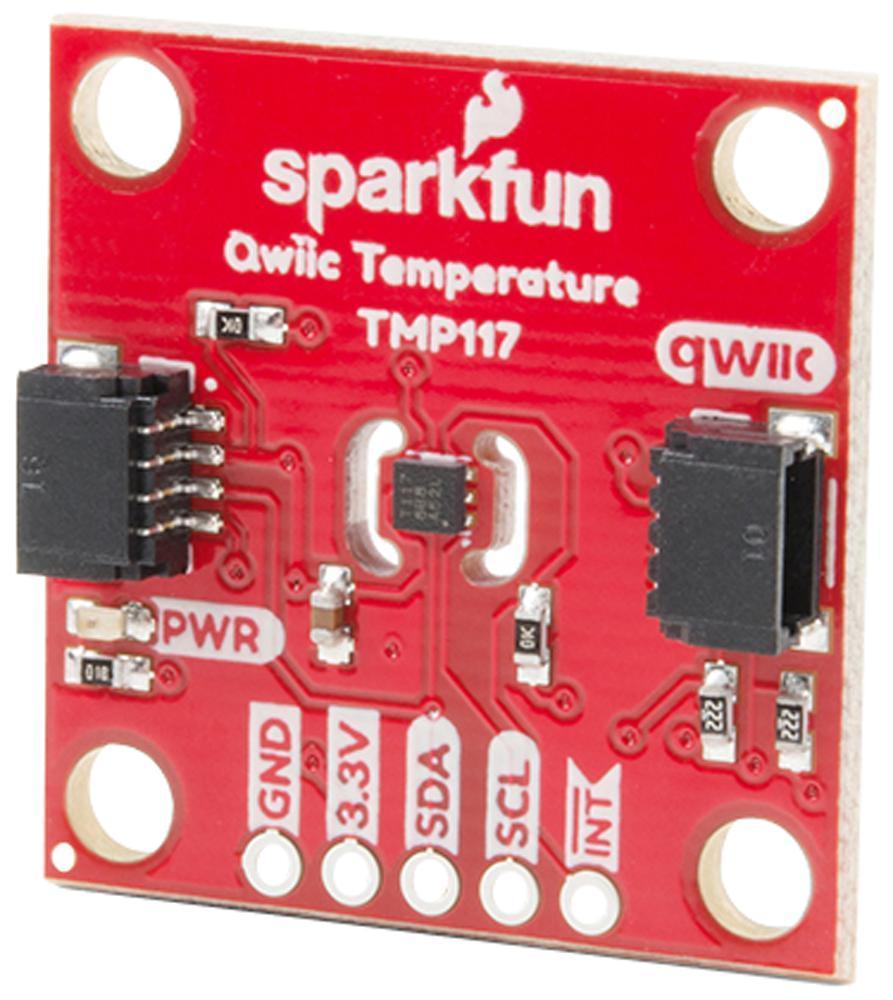

Breakout board based around the high precision TMP117 temperature sensor, which has 16-bit resolution and a maximum range of -55°C to 150°C. The board is fitted with dual Qwiic connectors for faster prototyping as part of the Qwiic Connect System.
Features
- Maximum operating range -55°C to +150°C
- ±0.1°C Accuracy across the range -20°C to +50°C
- ±0.15°C Accuracy across the range -40°C to +70°C
- ±0.2°C Accuracy across the range -40°C to +100°C
- ±0.25°C Accuracy across the range -55°C to +125°C
- ±0.3°C Accuracy across the range -55°C to +150°C
- Operating modes: continuous, one-shot, shutdown
- Programmable temperature limits and digital offset for system correction
- Communicates using dual Qwiic connectors or via I2C pins
- I2C Interface address: 0x48 (default), 0x49, 0x4A, 0x4B
- Supports up to four I2C addresses, allowing up to four TMP102 sensors on the I2C bus at the same time
- Operating voltage: 1.8-5.5V
- Board dimensions: 25.4x25.4mm
| Specifications | |
|---|---|
| Product Contents: | Qwiic sensor board only |
| Country of Origin: | United States |
