Resistor Network, 4K7, 8 Elements - MCRNLA09G0472B0E
Resistor Network, 4K7, 8 Elements - MCRNLA09G0472B0E
Regular price
£1.39 GBP
Regular price
Sale price
£1.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

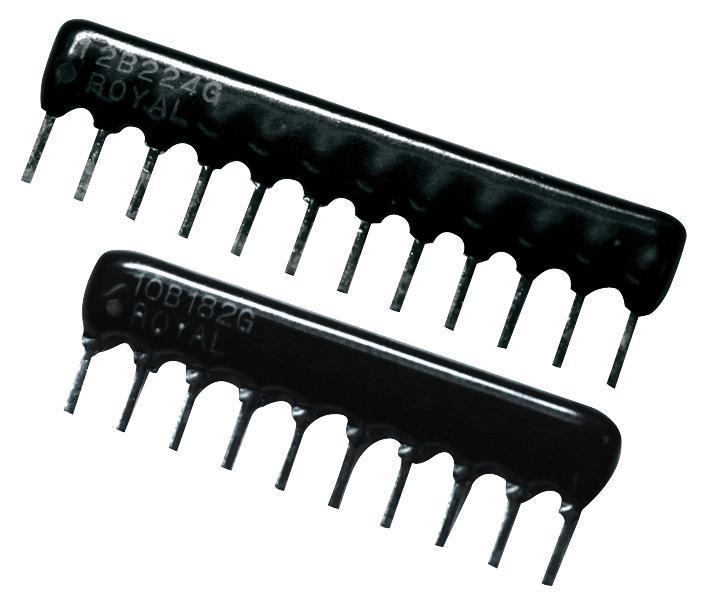

The Multicomp MCRNL series are thick film, low profile resistor network in single inline package. The resistance value includes E24 decade values from 10 ohm to 1Mohm. The number of resistor networks and configuration type are selected based on part numbering.
Product Info
- Maximum working voltage of 100V
- ±2% and ±5% tolerance
- Temperature coefficient is ±200ppm/°C (50 ohm to 1Mohm) and ±250ppm/°C (<50 ohm and >1Mohm)
- High reliability
- Miniature, high density packaging
- Power rating of 0.2W and 0.125W available
- Operating temperature ranges from -50°C to ?°C
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
| Details | |
|---|---|
| Resistance | 4.7kohm |
| No. of Elements | 8Elements |
| Network Circuit Type | Bussed |
| Resistor Case Style | SIP |
| No. of Pins | 9Pins |
| Voltage Rating | 100V |
| Resistance Tolerance | ± 2% |
| Temperature Coefficient | ± 200ppm/°C |
| Country of Origin: | Thailand |
