RoboHAT2 Robot Controller for Raspberry Pi - ROBOHAT2
RoboHAT2 Robot Controller for Raspberry Pi - ROBOHAT2
Regular price
£35.39 GBP
Regular price
Sale price
£35.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

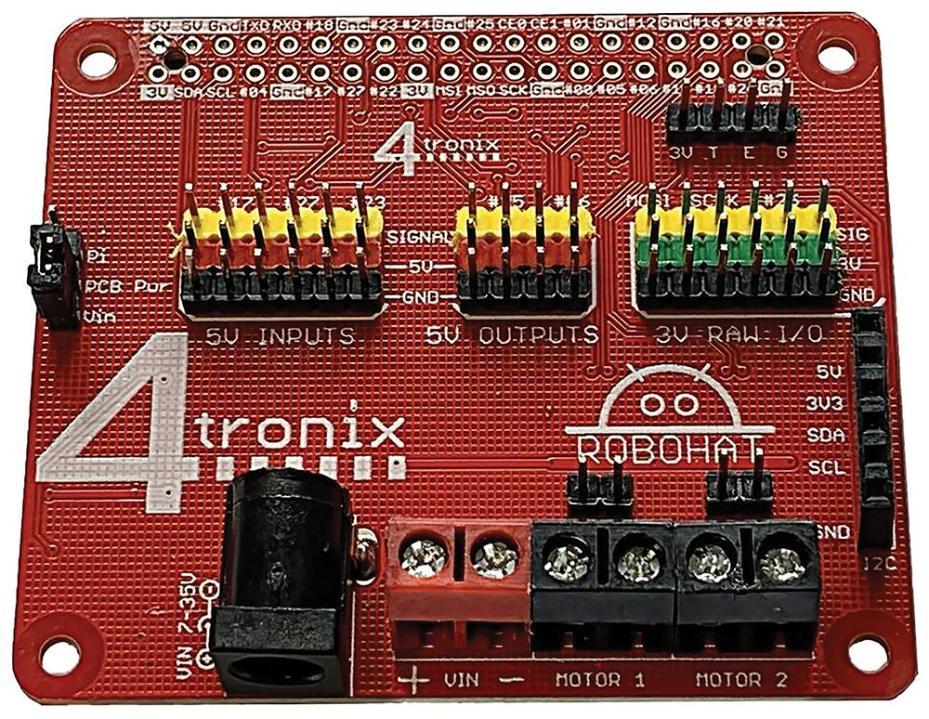

New and improved version of the original RoboHAT board. The RoboHAT2 is a comprehensive controller board designed for use in a wide range of Raspberry Pi based robotics projects. The RoboHAT2 provides up to 3.5A per channel and can use up to 25V.
Features
- Provides up to 3.5A per channel and can use up to 25V
- 5V Switching regulator safely powers robot and Raspberry Pi from 7V to 10V batteries
- High efficiency dual H-Bridge driver to drive 2x DC motors
- 6x 5V Level shifted GPIO inputs with 3 pin GVS connectors
- 4x 5V Level shifted GPIO outputs with 3 pin GVS connectors
- Optional separate power for motors (up to 25V and 3.5A per motor)
- 4 Pin header to connect a HC-SR04/HC-SR04P ultrasonic distance sensor
- I2C Breakout connector
- LED Status indicator for 5V power connection
- Compatible with all Raspberry Pi models with 40-pin GPIO connector
- Python library and code examples available with free download
- Board is supplied fully assembled, no soldering required
| Specifications | |
|---|---|
| Kit Contents | RoboHAT Board |
| Product Range | 4Tronix RoboHAT2 |
| Product Contents: | RoboHAT board only |
| Country of Origin: | Great Britain |
