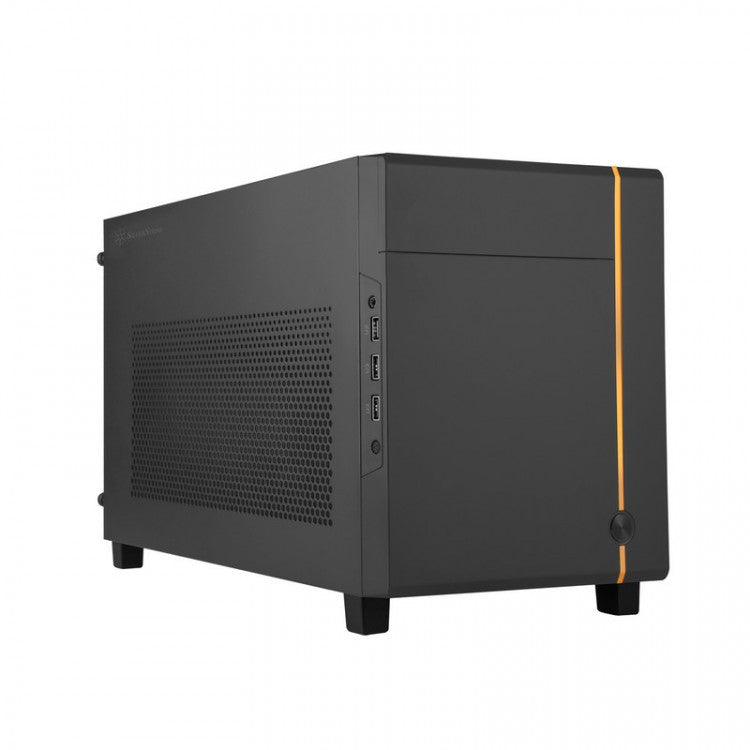

SilverStone Sugo Mini-ITX Compact Computer Cube Black Case - SST-SG14B

SilverStone SST-SG14B - Sugo Mini-ITX Compact Computer Cube Case

with configurable front panel

black

Mini-ITX cube chassis with powerful accommodation
? Supports 3 slot full length graphics cards with adjustable graphics card holder

? Compatible with Mini-DTX / Mini-ITX motherboard & ATX PSU

? Supports up to 240mm radiators

? Modular design with 4 removable panels (top, left, right, bottom)

? Different configurations support various storage components for 5.25", 3.5" and 2.5"

? Front I/O port includes: USB 3.0 x 2, USB 2.0 x 1, combo audio x 1

High compatibility with no compromise
Unlike most SFF Mini-ITX chassis on the market, SUGO 14 is capable of fitting a 3 slot full length graphics cards on the left side and up to 240mm radiators on the right side.

Exceptional usability & upgradability
Modular design allows for removal of 4 panels which eases the build process and ease of upgradability at a later date.

SUGO 14"s chassis supports 3 x 2.5" SSDs, and its multi-purpose bracket allows for different configurations to support various cooling and storage components

2-way placement
SUGO 14 comes included with 8 foot pads, the design allows users the flexibility in choosing how they wish to place their chassis

Thoughtful design down to the details
1. GPU holder
2. M.2 cutout
3. CPU cooler cutout
4. ATX PSU support

Model No. SST-SG14B (black)
SST-SG14W (white)
Material Plastic front panel, steel body
Motherboard Mini-DTX, Mini-ITX
Drive bay External 5.25" x 1 (without radiator and 3.5" x 1 installed)
Internal 3.5" x 2 (without radiator and 5.25" installed)
2.5" x 3
Cooling system Front --
Rear 120mm / 140mm x 1 (120mm black fan x 1 included)
Side 120mm / 140mm x 2
Top --
Bottom --
Internal --
Radiator support Front --
Rear 120mm
Side 120mm / 240mm
Bottom --
Expansion slot 3
Front I/O port USB 3.0 x 2
USB 2.0 x 1
Combo audio x 1
Power supply Standard PS2(ATX)
Limitation of VGA card Length: 330mm
Width: 148mm
Limitation of CPU cooler Air cooler: 182mm (without top fan)
240mm AIO water block: 55mm
Limitation of PSU 150mm
Net weight 4.89 kg
Dimension 247mm (W) x 215mm (H) x 368.1mm (D), 19.55 liters
9.72" (W) x 8.46" (H) x 14.49" (D), 19.55 liters
