Siretta - OSCAR1A/5M/SMAM/S/S/31 - Antenna, Gsm/gprs/3g, 5dbi, Wall Mount
Siretta - OSCAR1A/5M/SMAM/S/S/31 - Antenna, Gsm/gprs/3g, 5dbi, Wall Mount
Regular price
£42.69 GBP
Regular price
Sale price
£42.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

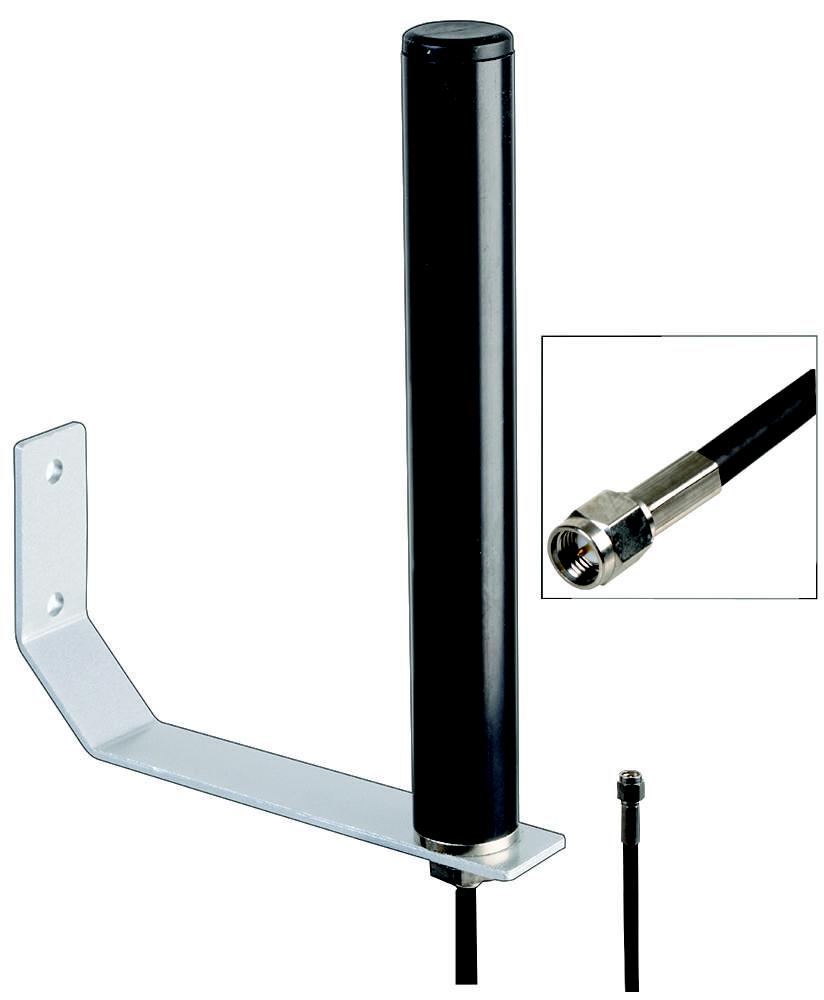

The robust OSCAR 1A is ideal for applications that demand a light and robust antenna, delivering high performance in harsh operational conditions
Product Info
- Omni-directional wall or bracket mount
- Ideal for outdoor use to improve cellular signal reception and transmission
- Monopole design provides a peak gain of 5dBi
- Rugged constructed with black ABS plastic over the radiating element
- Common applications include - base station purposes, remote monitoring, and alarm & security systems
- Operating Frequencies: 850, 900, 1800, 1900MHz (Quad Band GSM/GPRS), 2.1GHz (3G)
- 5m Low loss CFD195 cable fitted with SMA plug connector
- Antenna Dimensions (ØxH): 25x205mm
- Bracket Dimensions (LxH): 151x79mm
| Details | |
|---|---|
| Antenna Type: | GSM/GPRS/3G |
| Frequency Min: | 850Hz |
| Frequency Max: | 2.1GHz |
| VSWR: | 1.8 |
| Gain: | 5dBi |
| Input Impedance: | 50ohm |
| Antenna Polarisation: | Vertical |
| Antenna Applications: | GSM, 3G |
| Antenna Mounting: | SMA Connector |
| Product Range: | Siretta Oscar 1A |
| Country of Origin: | Taiwan |
