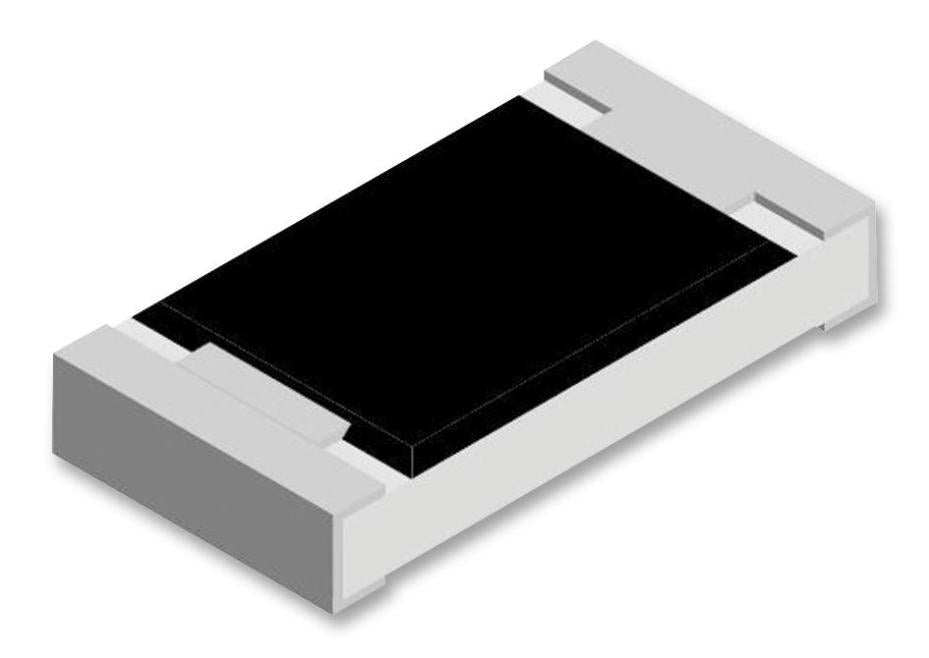

SMD Chip Resistor, 10kohm, ± 1%, 100mW, 0603 [1608 Metric], Thick Film, General Purpose - MCWR06X1002FTL
SMD Chip Resistor, 10kohm, ± 1%, 100mW, 0603 [1608 Metric], Thick Film, General Purpose - MCWR06X1002FTL
Regular price
£0.99 GBP
Regular price
Sale price
£0.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The MCWR series from Multicomp Pro are thick film chip resistors. These resistors are constructed in a high grade ceramic body. Internal metal electrodes are added at each end and connected by a resistive paste that is applied to the top surface of the substrate. The resistance range includes E96 and E24 decade values from 1ohm to 10Mohm. MCWR series are used in consumer electrical equipment, EDP, computer and telecom applications.
Features
- High reliability and stability
- Reduced size of final equipment
- Lower assembly costs
- 0402, 0603, 0805, 1206 standard case sizes available
- ±1% tolerance
- ±100ppm/°C and -200 to +400ppm/°C TCR values
- Available in different Voltage ratings 200V, 150V and 50V based on case size
- Power rating available in 1/4W, 1/8W, 1/10W and 1/16W based on case size
- Operating temperature range -55°C to +155°C
- Multicomp Pro products are rated 4.6 out of 5 stars
- 96% of customers would recommend to a friend
- 12 month limited warranty *view Terms & Conditions for details
| Specifications | |
|---|---|
| Resistance | 10kohm |
| Resistance Tolerance | ± 1% |
| Power Rating | 100mW |
| Resistor Case Style | 0603 [1608 Metric] |
| Resistor Technology | Thick Film |
| Resistor Type | General Purpose |
| Temperature Coefficient | ± 100ppm/°C |
| Voltage Rating | 75V |
| Country of Origin: | China |
