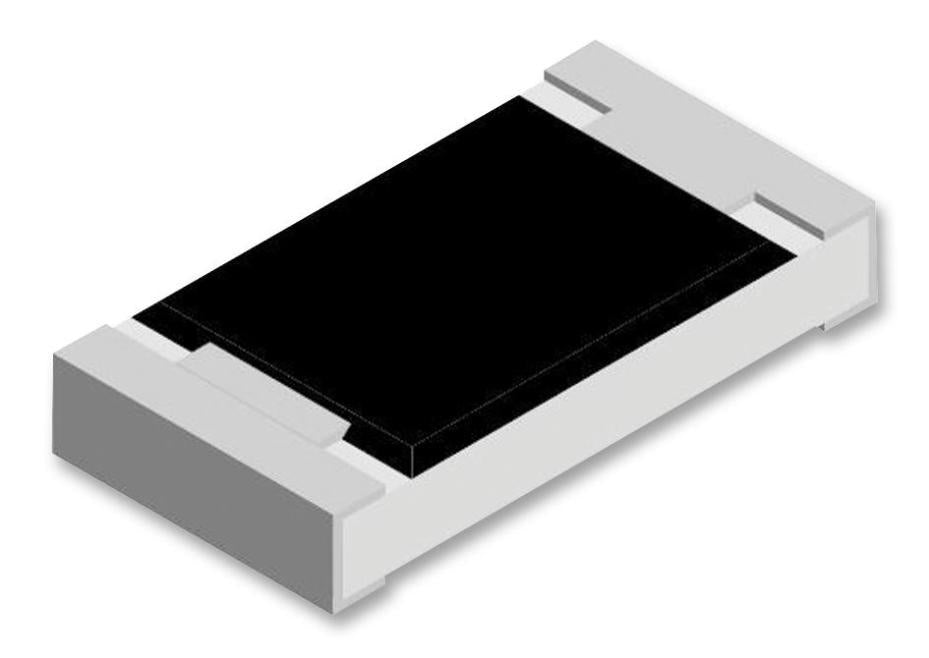

SMD Chip Resistor, 1206 [3216 Metric], 4.7 kohm - MULTICOMP

SMD Chip Resistor, 1206 [3216 Metric], 4.7 kohm - MULTICOMP

£0.99 GBP
£0.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The MCWR series from Multicomp are thick film chip resistors. These resistors are constructed in a high grade ceramic body. Internal metal electrodes are added at each end and connected by a resistive paste that is applied to the top surface of the substrate. The resistance range includes E96 and E24 decade values from 1ohm to 10Mohm. MCWR series are used in consumer electrical equipment, EDP, computer and telecom applications.

Product Info

  1. High reliability and stability
  2. Reduced size of final equipment
  3. Lower assembly costs
  4. 0402, 0603, 0805, 1206 standard case sizes available
  5. ±1% tolerance
  6. ±100ppm/°C and -200 to +400ppm/°C TCR values
  7. Available in different Voltage ratings 200V, 150V and 50V based on case size
  8. Power rating available in 1/4W, 1/8W, 1/10W and 1/16W based on case size
  9. Operating temperature range -55°C to +155°C
  10. Multicomp products are rated 4.6 out of 5 stars
  1. 96% of customers would recommend to a friend
  2. 12 month limited warranty *view Terms & Conditions for details

Details
Resistor Case Style 1206 [3216 Metric]
Resistance 4.7kohm
Product Range MCWR Series
Voltage Rating 200V
Resistor Element Type Thick Film
Power Rating 250mW
Resistance Tolerance ± 1%
Temperature Coefficient ± 100ppm/°C
Country of Origin: China

EAN:
Manufacturer Part Number:
View full details
