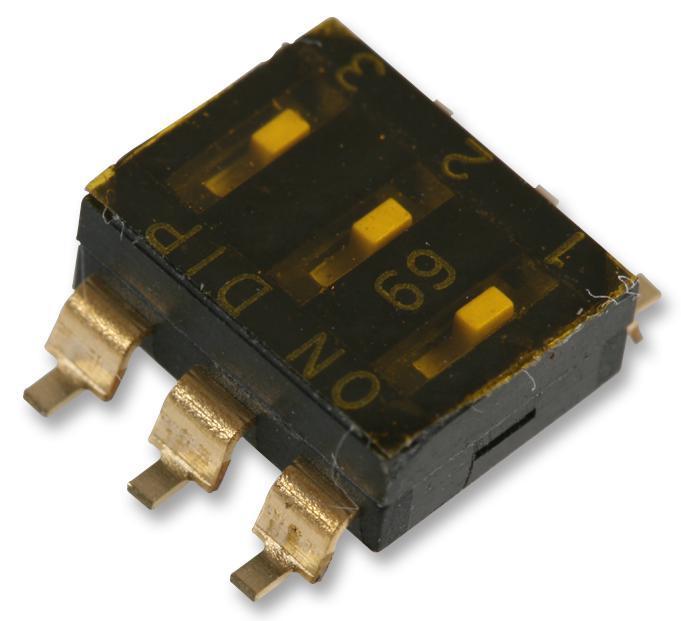

SMD End Stackable DIP Slide Switch, 3 Way - MCEMR-03-T
SMD End Stackable DIP Slide Switch, 3 Way - MCEMR-03-T
Regular price
£1.99 GBP
Regular price
Sale price
£1.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The MCEMR-03-T from Multicomp Pro is a 3 way end stackable DIP switch with recessed actuator. It has UL94V-0 rated black high temperature thermoplastic nylon base/cover and UL94V-0 rated white high temperature thermoplastic LCP actuator.
Features
- Switching capacity is 25mA at 24VDC
- SPST contact configuration
- Maximum operating force is 1000gf
- 2,000 cycles mechanical life and 2,000 cycles electrical life
- Minimum contact resistance is 100mohm at 500VDC
- Maximum insulation resistance is 100Mohm at 500VDC
- Operating temperature range from -20°C to +85°C
- Gold plated copper alloy contact and gold plated brass terminal
- Top tape sealed
| Specifications | |
|---|---|
| No. of Circuits | 3Circuits |
| Switch Actuator Style | Slide |
| Switch Mounting | Surface Mount |
| Contact Configuration | SPST |
| Contact Voltage DC Max | 24VDC |
| Contact Current DC Max | 25mA |
| Product Range | MCEMR Series |
| Switch Type | DIP Sealed |
| Country of Origin: | China |
