STM8S-DISCOVERY Stmicroelectronics Kit , Development , Stm8S W/Debugger
STM8S-DISCOVERY Stmicroelectronics Kit , Development , Stm8S W/Debugger
Regular price
£11.49 GBP
Regular price
Sale price
£11.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description

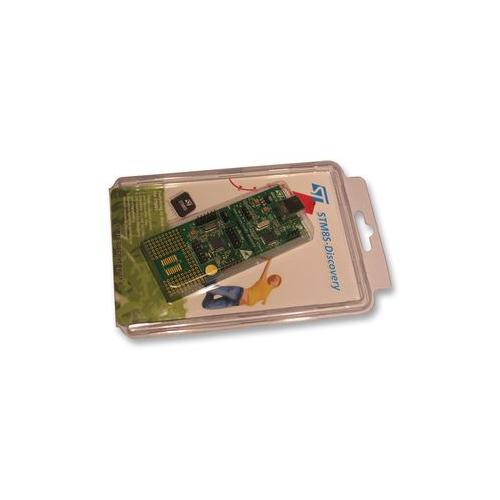

The STM8S-DISCOVERY helps user to discover the STM8S features and to develop and share their own application. It is based on an STM8S105 and includes an embedded debugger, ST-LINK and a touch sensing button. Numerous applications are available from the STM8S-Discovery web page. The STM8S-DISCOVERY is designed around the STM8S105C6T6 microcontroller in an LQFP48 package. It has two distinct sections that may be separated, the STM8S105C6T6 module and the ST-LINK module.
Product Features
- STM8S105C6T6 microcontroller, 32KB Flash, 2KB RAM, 1KB EEPROM
- Powered by USB cable between PC and STM8S-DISCOVERY
- Selectable power of 5 V or 3.3 V
- Touch sensing button
- Features User LED
- Extension header for all I/Os
- Wrapping area for users own application
- Embedded ST Link
- USB interface for programming and debugging
- SWIM debug support
Product Details
| Core Architecture: | STM8 |
| Core Sub-Architecture: | STM8 |
| Features: | Powered by USB Cable, Touch Sensing Button, Embedded ST Link, User LED |
| Kit Contents: | Board, USB Cable |
| No. of Bits: | 8bit |
| Silicon Core Number: | STM8 |
| Silicon Family Name: | STM8S |
| Silicon Manufacturer: | STMicroelectronics |
