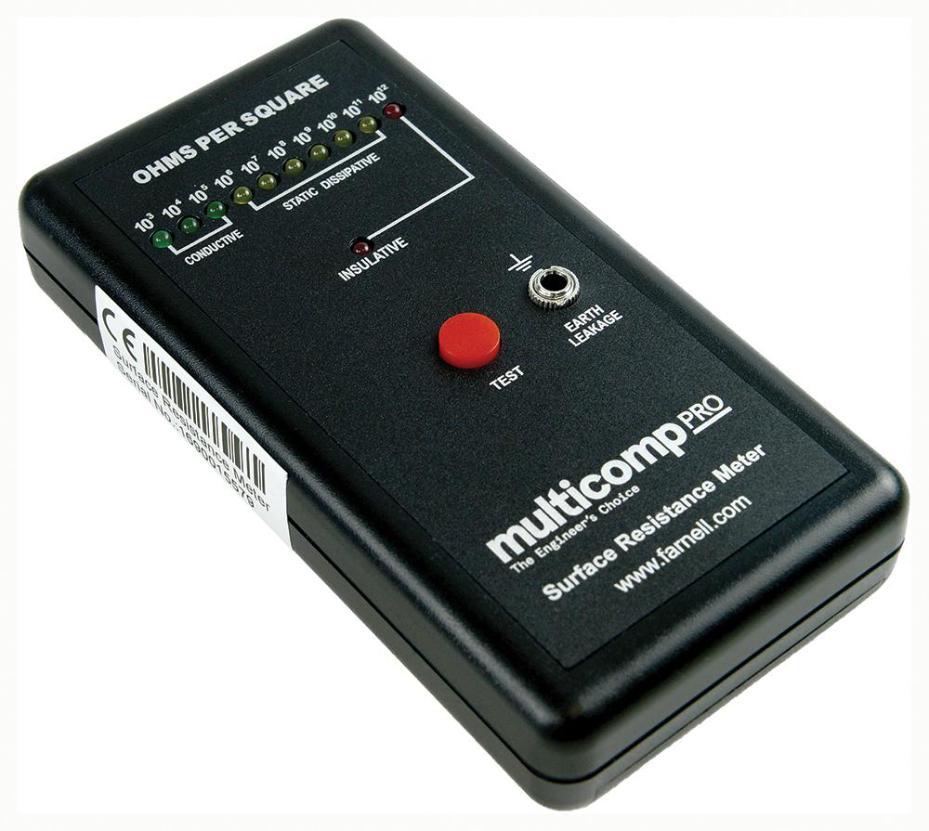

Surface Resistance Meter, 9V - MP005768
Surface Resistance Meter, 9V - MP005768
Regular price
£292.69 GBP
Regular price
Sale price
£292.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Multicomp Pro MP005768 surface resistance meter has been designed to measure both surface resistance and resistance to ground. To measure surface material place the meter on the area to be tested and press the test button. For measuring resistance to ground, place the ground lead into the earth leakage socket, connect the crocodile clip to the area to be tested and press the test button.
Features
- Tests conductive, static dissipative and insulative surfaces using two parallel bars
- Conductive is indicated by green LEDs
- Static dissipative by yellow LEDS from 106-1011
- Insulative by red LEDs from 1012+
- Operating temperature range from 5-49°C
- Requires 9V, PP3 battery (not supplied)
- Test voltage of 9V
- Accuracy of -/+ 10%
- Repeatability of -/+ 5%
- 6oz device weight
| Specifications | |
|---|---|
| Product Type | Digital Surface Resistance Meter Kit |
| Product Contents: | The meter comes complete with ground lead. Battery not supplied. |
| Important Product Info: | Calibration should be carried out annually (please contact us for more information). |
| Country of Origin: | China |
