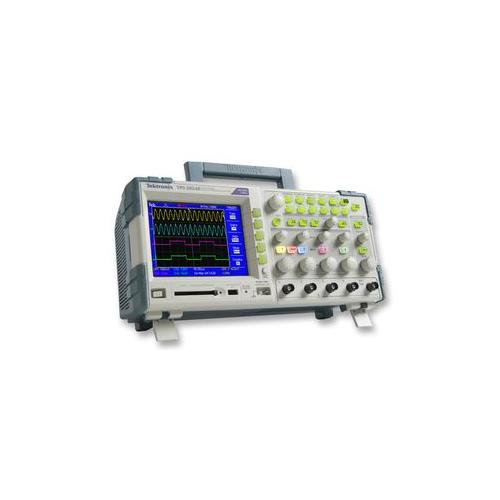

TPS2024B Tektronix Oscilloscope , 200Mhz , 4Ch , 2Gs/S
TPS2024B Tektronix Oscilloscope , 200Mhz , 4Ch , 2Gs/S
Regular price
£6,921.89 GBP
Regular price
Sale price
£6,921.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
The TPS2024B offers a distinctive range of capabilities in an oscilloscope with controls and menus you will find familiar and easy to use. IsolatedChannel™ technology provides isolation from ground and isolation between channels allowing you to take measurements with less worry about damaging circuitry. Battery power comes standard, making it a natural choice for field applications. For work on power electronics, optional software integrates commonly needed power system measurements into the instrument, speeding up power analysis and troubleshooting.
Product Features
- Autoset
- Simplified Setup, Context Sensitive Help and Backlit Menu Buttons
- Built-in I/O Interface and Integrated Mass Storage
- 11 Automatic Measurements as well as FFT and Advanced Triggers
- Isolated External Trigger Input
- Colour Display (1/4 VGA LCD)
- True Portability; Weighs Only 6 lbs. (Without Batteries)
- 8 Hours of Continuous Battery Operation, one battery included, second battery optional
- Waveform and Set-up Memories
Product Details
| Bandwidth: | 200MHz |
| Calculated Rise Time: | 2.1ns |
| Display Memory Depth: | 2.5 kpts |
| Input Impedance: | 1Mohm |
| Item_Noun: | Oscilloscope |
| Kit Contents: | One 200MHz TPP0201 Passive Probe Per Channel (10:1), OpenChoice & NI LabVIEW SignalExpress LE Software, Lithium-Ion Battery, USB to RS-232 Cable, Front Cover, Calibration Certificate |
| Plug Type: | Euro, UK |
| Product Range: | TPS2000B Series |
| Sampling Rate: | 2GSPS |
| Scope Channels: | 4 Analogue |
| Scope Display Type: | QVGA LCD Colour |
| Scope Type: | Bench |
