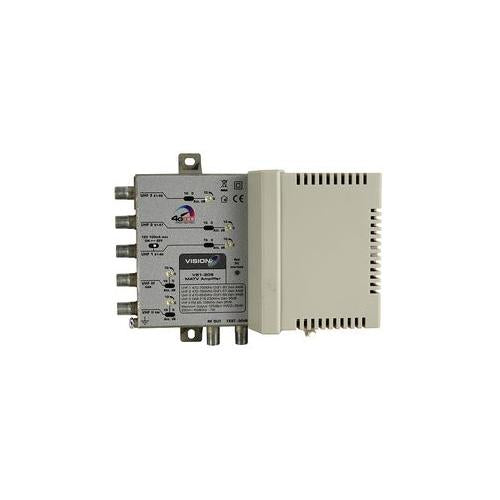

V51-305 Vision Amplifier 5 Input Matv

This amplifier is designed with high gain and very high input and output headroom to minimise the effects of interference overload. The V51 range of amplifiers can be used in small, medium and large MATV and IRS systems from 10x to 500x subscriber points or as a pre-amplifier mixer in cascade with a launch amplifier. The gain/level and slope settings are controlled by a 10dB gold contact slider switch attenuator and 10dB rotary trimmer attenuator for accurate and reliable adjustment.

• Very high quality broadband MATV amplifiers for all small, medium and large systems
• Push-Pull output stage for superior performance
• Super flat gain with very high output headroom
• 4G-LTE Ready filtered inputs with high input capability
• 10dB + 10dB Gain and slope controls
• Die-cast fully screened amplifier housing for superior interference immunity
• Test points and earth-bonding post
• Built-in mains power supply with UK plug with LED power on indicator
• 5x inputs, 1 output, 44dB gain
