VELLEMAN KIT - K8060 - K8060 DISCRETE POWER AMPLIFIER 200W
VELLEMAN KIT - K8060 - K8060 DISCRETE POWER AMPLIFIER 200W
Regular price
£21.29 GBP
Regular price
Sale price
£21.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description

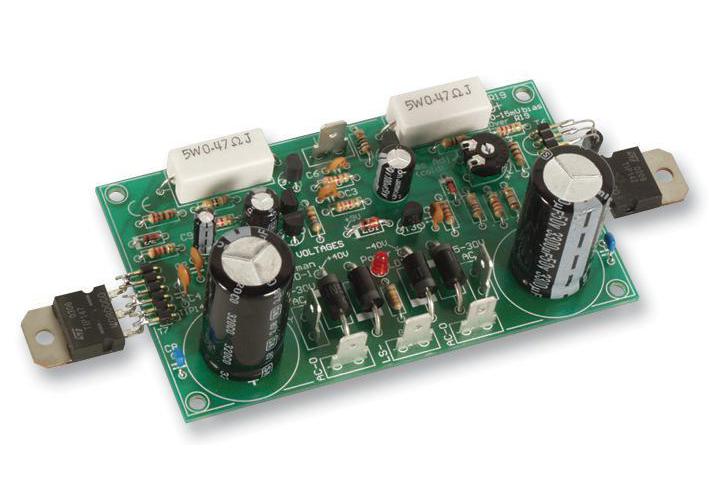

K8060 Velleman Kit Discrete Power Amplifier 200W
Product Features
- Fully discrete design using Epitaxial Darlington transistors
- Ideal for active speaker system or subwoofer, guitar amp, home theatre systems, instrument amp, etc.
- DC supply circuit on board with LED indication
- Overload and short-circuit protection
- Comes complete with transistor isolators, spacers and bolts
- PCB Dimensions (LxW): 107x62mm
- Heatsink which the board mounts onto and dissipates heat generated by power transistors is available
- Power supply: 2x 25-30Vac
- Power output: 200W @4R
- RMS power: 100W @4, 70W @8R
- Distortion: 0.02% @1kHz/10W
- Frequency: 3Hz-200kHz (-3dB)
- S/N ratio: 115dB
- Sensitivity: 0.6Vrms
- Damping factor: >800
