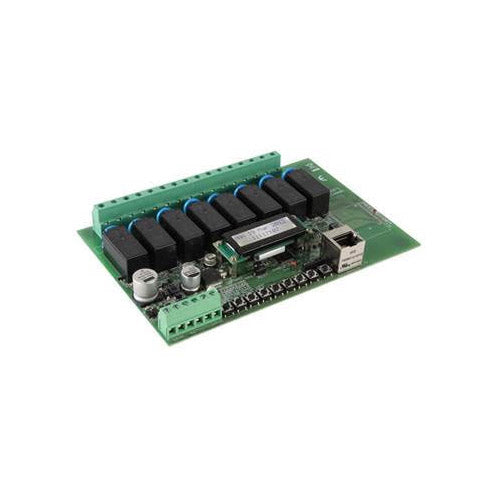

VM201 Velleman Kit Electronics Module Ethernet Relay

Connect the card to your (wireless) router cable and operate the 8 relays or check the status of the input from anywhere in world. The card is web server based, so almost any internet browser can connect to the card, even mobile devices. No additional software installation required.

• IEEE 802.3 Compatible Ethernet controller
• Supports 10 Base-T Port (10Mbps), Static IP or DHCP
• User definable NETBios name
• Use SNTP time server as real time clock (Internet time server)
• Sends E-mail at power up and input events (activated and/or deactivated)
• Web interface for configuration and operation
• TCP Server (user definable port)
• LCD Displays clock or network settings
• Multiple users (1 administrator and 3 additional users)
• Timer programs for all 8 channels, maximum 28 timer programs
• Scheduler: day, weekend, working days, every day and every day except Sunday
• Program actions: on, off or pulse (1 to 99 sec, 1 to 99 min or 1 to 99 hours)
• 8 Relay contacts: 12A @ 30Vdc or 16A @ 230Vac
• 1 Input: dry contact or voltage input 5-20Vac or dc
• Power Required: 12Vac/500mA
• iOS/Android application:
• Turn a relay on or off
• Monitor the status of each relay (on or off)
• Activate or deactivate the week program for each relay
• Monitor the status of the VM201 input
