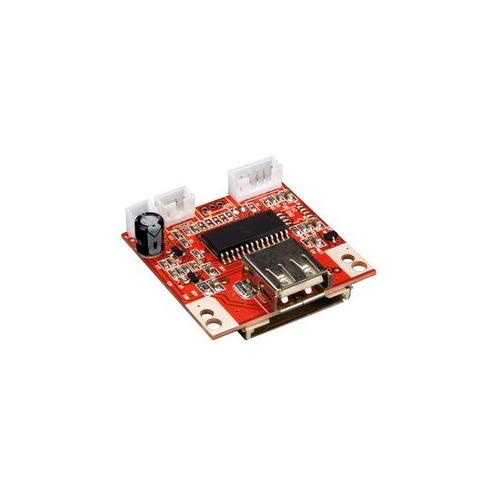

VM202N Velleman Kit Electronics Module Mp3 Jukebox

For automotive use (12V): Put a 68R/1W resistor in series with the (+) of the power supply, to avoid excess dissipation.

• Plays your MP3 files stored on a USB memory stick or SD card
• Push buttons for Next, Previous & Play/Pause
• LED Play/Pause indicator
• Playback starts at power on
• Continuous looping of all tracks
• Stereo line level output
• Applications:
• Make your own MP3 jukebox
• MP3 Playback to any domestic or car audio system
• Message playback system
• Supported 128kb/s, 192kb/s, 256kb/s, 320kb/s variable bit rate file formats
• Audio Output: 500mV/47kR Stereo line out
• Power Supply: 5VDC or 9 - 12VDC/50mA max
• Dimensions: 45x40x8mm
