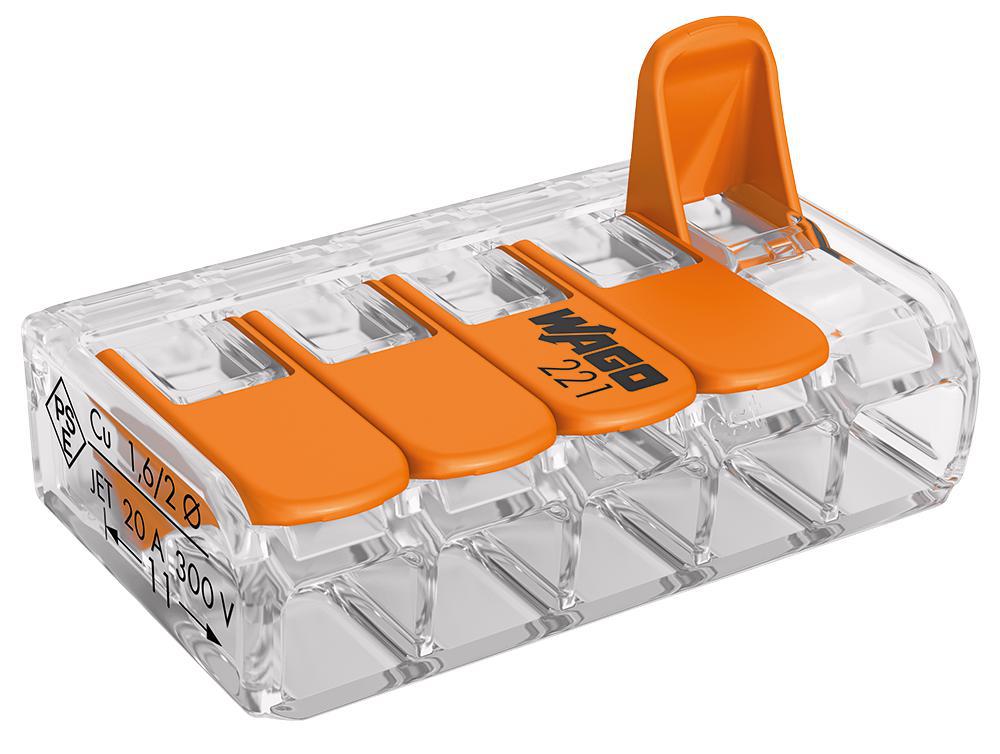

Wago - 221-415 - Compact Lever Connector 5 Way
Wago - 221-415 - Compact Lever Connector 5 Way
Regular price
£2.09 GBP
Regular price
Sale price
£2.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
WAGO's new "superstars" for electrical installations allow solid, stranded and fine-stranded wires to be connected faster, more reliably, while minimizing the amount of space in junction boxes.
Product Info
- Up to 40% smaller less space required than for the original WAGO 222
- Transparent housing for visual inspection shows that the wire is inserted properly and stripped to the correct length
- Easy termination via reduced operating force
- Any combination of wire types and sizes from 0.14 to 4mm2 (24-12AWG) is possible
- Two test ports for all standard test probes
- Dimensions (WxHxL): 29.9x8.3x18.6mm
| Details | |
|---|---|
| No. of Positions: | 5Ways |
| Wire Size AWG Min: | 24AWG |
| Wire Size AWG Max: | 12AWG |
| Conductor Area CSA: | 4mm2 |
| Wire Connection Method: | Push In Lock |
| Rated Current: | 32A |
| Rated Voltage: | 450V |
| Product Range: | 221 Series |
| Country of Origin: | Germany |
